MOD – Formula SRL

ENDURO AND ALL-MOUNTAIN COIL SHOCK

The Mod coil shock is built for sensitivity, control and reliability.

Sensitivity

Coil shocks excel at initial-touch sensitivity. The Mod’s high oil flow damping circuit and large volume bladder oil reservoir give fine levels of grip. They also allow the shock to run cooler, giving a consistent feel on long descents.

Control

The mid to end stroke is controlled by Formula’s Compression Tuning System, or CTS. These are rider-changeable valves that increase or decrease the hydraulic flow within the shock. CTS allows you to tune the shock’s characteristics to the way you ride.

A simple polyurethane bump-stop prevents harsh bottom outs without the need for complex hydraulics.

Reliability

With major service intervals every 200 hours the Mod is reliable and can be serviced at home.

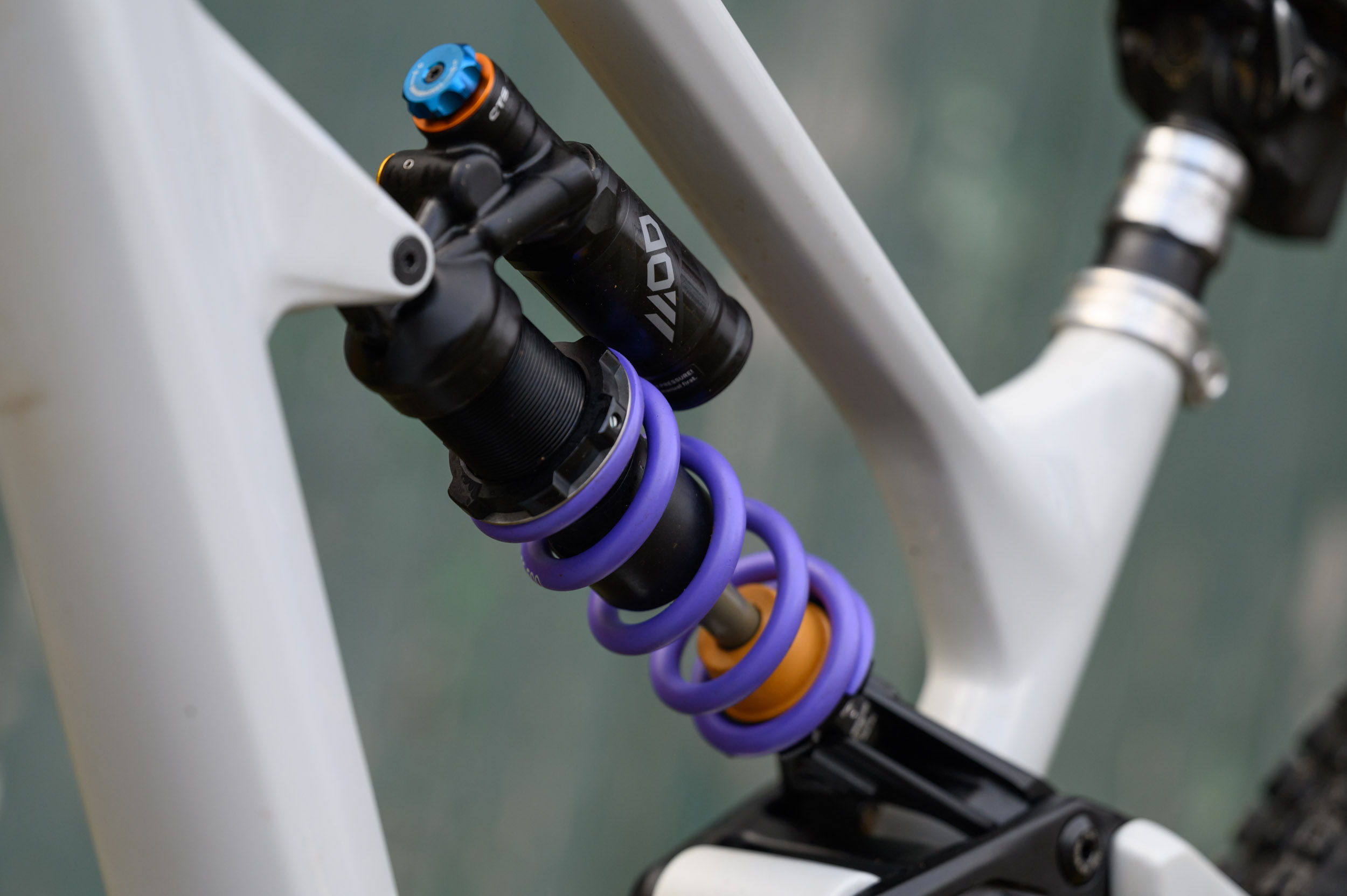

The Mod is available in a yoke mount compatible version.

Technologies

Technical specifications

SIZES

Standard

210x 55, 52.5, 50, 47.5 - 230x 65, 62.5, 60, 57.5

Trunnion

185x 55, 52.5, 50, 47.5 - 205x 65, 62.5, 60, 57.5

ADJUSTMENTS

Compression

17 Click Adjustment

Rebound

13 Click Adjustment

CTS

Gold, Orange and Green valves included

Compression Switch

Two position - Open, Firm

Coil spring

Preload

COLORS

Shock body

Glossy black

Coil springs

Ultraviolet, Graphite

COIL SPRING

Sizes (lbs/in)

300, 350, 400, 450, 500, 550, 600, 650, 700

Material

Ultralight steel

HARDWARE

Sizes (mm)

20x8, 22x8, 25x8, 30x8, 35x8, 40x8, 22x10, 25x10, 30x10

WEIGHT

210x55 with 300 coil spring

670g

The Mod's large-volume bladder reduces friction and reaction time compared to an Internal Floating Piston design, this improves small-bump sensitivity and generates less heat for more consistent performance.

The Mod uses a 30mm internal piston and large diameter oil circuits for improved sensitivity, reduced friction and better heat management. This gives a consistent feel on long descents and increases reliability.

The Mod uses our Compression Tuning System. User-changeable valves allow easy tuning of the shocks compression characteristics. Three CTS valves are included with the shock - gold (light compression), orange (mid compression), green (firm compression).
